Steel Plate · Material Family
Low Temperature Carbon Steel Plate
Choosing low temperature carbon steel plate starts with the requirement, not the label. What settles the order is the governing standard, the grade or class inside it, the delivery and heat-treatment condition, the impact-testing requirement, the plate dimensions, the quantity and the destination.
Send the governing specification with its edition where the design calls for one, the required grade or class, the thickness, width and length, the design service temperature and impact-test basis, the quantity, the delivery point and the inspection documents the project requires — so the enquiry can be checked against the duty before anything is quoted.
Price on request · Availability confirmed against the live enquiry
Selection
How to narrow low temperature carbon steel plate to a specification
Work from the service requirement inward. “Low temperature” describes a duty, not a grade — it only becomes an order once a specification, a class, a condition and a tested property are attached to it.
Start from the service temperature, not the label
The design minimum service temperature, the operating pressure and the nature of the contained fluid decide which specification and class are even in scope. “Low temperature” on its own does not identify a grade: the same family name is used across specifications whose impact-testing basis and design intent differ.
Lock the specification, class and heat treatment
The governing standard, its edition and the class inside it are the basis of acceptance. Normalising and quenched-and-tempered classes under one specification do not share the same mechanical property set or the same design allowable, so the class has to be named rather than inferred.
Separate the condition from the test
How the plate is delivered — as-rolled, normalised, or in another specified condition — is one ordering decision. The impact-testing requirement, its temperature and its acceptance energy are a second one. A project can specify one without the other, and the two must be stated separately on the enquiry.
A neighbouring grade or a heavier section is a comparison path, not an automatic substitute. Where the design names a class and a test basis, that pairing governs acceptance. Compare carbon steel plate specifications.
Specification and dimension reviewSpecification Check
Check the plate selection against the order
Enter the details the order will actually be placed on. The check flags what is still missing before an enquiry is prepared, so an apparently comparable option is not treated as equivalent.
Leave anything genuinely undecided blank rather than filling it with an assumption — the gap is what the technical review needs to see.
Still to resolve before an enquiry can be checked:
- Intended service / design minimum metal temperature
- Governing standard or specification (with edition)
- Class or grade
- Thickness (mm)
- Quantity
- Destination / delivery point
Copyable summary
Low Temperature Carbon Steel Plate — specification summary Service / design minimum metal temperature: — not stated Standard / specification: — not stated Class / grade: — not stated Thickness: — not stated Width: — not stated Length: — not stated Delivery / heat-treatment condition: — not stated Impact testing (temperature / energy): — not stated Surface / edge / processing: — not stated Quantity: — not stated Destination: — not stated Required documents: — not stated Price, availability, mill origin, lead time and certification are confirmed against the live enquiry.
Specification
What to state so acceptance is unambiguous
Each input below is a separate ordering decision. Leaving one open is the usual reason two quotations turn out not to be the same plate.
| Input | What it fixes |
|---|---|
| Standard and edition | The governing material specification, with the edition where the design or the purchaser requires one. This is the document the order will be certified against. |
| Class or grade | The designation inside the specification — the class fixes the tensile range, yield requirement and permitted heat-treatment condition, and is not interchangeable with another class of the same standard. |
| Plate thickness, width and length | Finished dimensions as required, with the dimensional basis the project uses. Note any critical fit so the tolerance can be checked against the standard before quotation. |
| Delivery / heat-treatment condition | How the plate is supplied — for example as-rolled, normalised, or in another condition the specification permits. Stated on its own, separately from any impact requirement. |
| Impact testing basis | Whether impact testing applies, at what test temperature and to which acceptance energy, and whether it is a specification requirement or a project addition. A distinct decision from the delivery condition. |
| Surface, edge and processing | Any requirement on surface condition, edge preparation, cutting, bevelling or marking, and whether that processing is part of the supply scope. |
| Inspection and documents | The certificate type and any additional testing, inspection or third-party witness the purchaser specifies. Agreed at enquiry stage, not assumed from the material family. |
| Quantity and destination | Ordered quantity and the delivery point or port, delivery term and consignee. These drive packing, shipment documents and the commercial basis. |
The delivery or heat-treatment condition and the impact-testing requirement are recorded separately. Neither one implies the other, and acceptance is checked against each on its own.

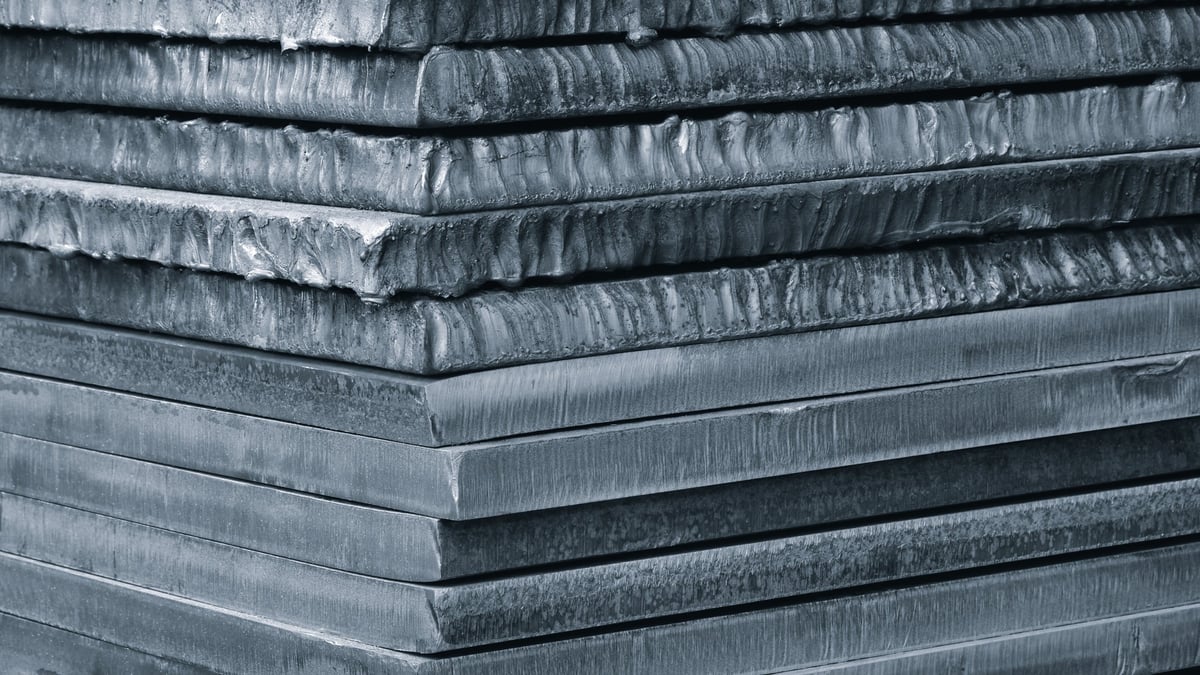

Plate edge, surface and identificationVerification
Confirming the plate matches the order
Verification follows the purchase specification. Ask for the records the project requires, and match what arrives to what was ordered.
Preparation for fabrication and dispatch- Match the material identification to the ordered specification, class, heat number and dimensions before the plate is cut — once it is processed, the identification is much harder to reconstruct.
- Keep the delivery condition and the impact-testing requirement recorded as separate line items, so acceptance is checked against the right figure on the right document.
- Match the document set to what the purchase specification requires, and raise any certificate type, heat-treatment record or supplementary test at enquiry stage rather than after delivery.
- Confirm any class approval, third-party inspection or project approval against the actual supply — they follow the order and the works, and are not implied by the material family named on this page.
Certificates, heat-treatment records, class approvals and supplementary tests are confirmed for the actual supply. Nothing on this page should be read as confirming them for a particular order.
Applications
Where low temperature carbon steel plate is specified
Application fit depends on what the plate has to do in service and how it will be fabricated. The same nominal description can carry different toughness, weldability and documentation controls from one duty to the next.
Storage tanks and low-temperature containment
Where the stored product and the design minimum metal temperature set the class and the impact-testing basis, and the design code governs the allowable.
View this applicationBridge and infrastructure steelwork
Where the governing rule is the project's steelwork specification rather than a pressure-retaining standard, and toughness is called up by that specification.
View this applicationFabrication and general steelwork
Where the plate is procured to be cut, formed and welded, so the delivery condition and the weldability route matter as much as the strength class.
View this applicationUse an application path only where the duty actually matches. These pages describe the requirements that come with each service — they are not a statement that one specification suits all of them.
GCC Supply
Delivering into the Gulf
Keep the technical specification unchanged while the destination-specific import path, consignee requirements and shipment documents are checked for the actual order.
Steel plate — United Arab Emirates
Steel plate — Saudi Arabia
Steel plate — Qatar
Steel plate — Kuwait
Steel plate — Bahrain
Steel plate — OmanCustoms classification, conformity requirements and duty treatment follow from the actual goods and destination, and are confirmed for the specific shipment rather than quoted generally.
Technical Note
The purchasing sequence that avoids a costly re-quote
Identify the governing service requirement first, then lock the material specification and edition, the class or grade, the delivery condition, the impact-testing basis, the dimensions, the testing and the documents.
Doing it in that order keeps offers comparable. Working the other way round — collecting quotes against a familiar description and trying to reconcile the specifications afterwards — is how two offers that both say “low temperature carbon steel plate” turn out to differ in class, in heat-treatment condition, in impact behaviour or in acceptance basis.
Nothing on this page is a material property, a stock position or a certificate. It sets out what an enquiry for this material has to contain so that what comes back can be checked against the project requirement rather than against a name.
Where a requirement is genuinely still open, leave it open on the enquiry rather than filling it with an assumption. A supplier who can see the gap can tell you what has to be resolved; a supplier given a guess has nothing to check against.
Selection context for this page draws on ASTM International — A516/A516M (information date 2026-10-06). Low-temperature suitability cannot be inferred from a generic material label: the required class, the impact-testing requirement, the heat-treatment condition and the design code all have to be specified. This source is used for selection context, not for supplier-specific claims.
- 01
Define the service
State the design minimum metal temperature, the operating pressure and the service environment. This decides which specification family is even in scope.
- 02
Fix specification, class and condition
Name the governing standard with its edition, the class inside it, and the required delivery or heat-treatment condition.
- 03
State the impact requirement
Give the test temperature, the acceptance energy and whether the impact requirement comes from the specification or from a project addition.
- 04
Confirm dimensions and documents
Thickness, width, length and tolerance basis, plus the certificate type, heat-treatment records and any third-party inspection.
- 05
Add quantity and destination
Ordered quantity, delivery point, delivery term and consignee — the inputs that let the offer become firm.
- 06
Review processing and terms
Cutting, edge preparation and marking scope, then the commercial terms, before the order is confirmed.
FAQ
Low temperature carbon steel plate sourcing, answered directly
Each answer depends on the project specification and the actual order conditions. Where a requirement is order-specific, it is confirmed against the enquiry rather than assumed here.
Which standard or grade should be stated on the enquiry?
State the specification the project actually names, with its edition where the design or the purchaser requires one, and the class or grade inside it. “Low temperature carbon steel plate” describes a duty, not a purchase specification — two suppliers can quote that description against different standards, different classes and different impact requirements. If the design has already fixed a class and a test basis, put both on the enquiry rather than the general description.
When does heat treatment or impact testing matter?
These are two separate decisions and should be stated separately. The delivery or heat-treatment condition describes how the plate was produced and supplied; the impact requirement sets what the material must demonstrate, typically at a stated test temperature and to a stated acceptance energy. A project can call for one without the other. Do not assume that a named delivery condition implies an impact result, or that an impact requirement removes the need to state the condition.
Which dimensions and tolerances govern acceptance?
Give the required thickness, width and length and state the tolerance basis the project uses rather than leaving the supplier to choose one. Plate tolerances are tied to the governing standard and can vary with thickness and product class. Where a fabrication has a critical fit, say so on the enquiry so the tolerance can be checked before quotation rather than discovered after delivery.
What inspection documents are required?
Provide, or ask for, the document set the project requires — typically the material test certificate to the type named on the order, heat-treatment records where the condition matters to acceptance, and any additional testing, inspection or third-party witness the purchaser specifies. Where a certificate type or a supplementary test is needed, state it at enquiry stage so it can be scheduled and costed. Nothing on this page should be read as confirming certification for a particular supply.
Can a related grade be substituted?
Only where the governing specification permits it and the substitution is verified against the actual service. A heavier section, a neighbouring class or a different material family may look comparable on a summary but differ in impact behaviour, weldability, design allowable or acceptance basis. Related pages on this site are comparison paths, not evidence that two materials are interchangeable. Where the project requires a specific designation, that designation governs.
What destination details are needed for a firm commercial offer?
State the delivery point or port, the required delivery term, the consignee and any document set the destination requires. Customs classification, conformity requirements and duty treatment follow from the actual goods and the actual destination, so they are confirmed for the specific shipment rather than quoted generally. Availability, price and lead time are likewise confirmed against the live enquiry.
Request a Quote
Provide the standard and class, or the service requirement, with the thickness, width and length, the delivery condition, the impact- testing basis, the quantity, the destination, the required documents and any cutting, testing or inspection scope. Price is always on request.
If a requirement is still undecided, state it explicitly. The technical review can then identify what has to be resolved before a commercial offer is finalised.
