Fit & Selection Logic
When API 5L line pipe fits — and what it takes to specify it
API 5L is the line-pipe specification. Selection starts from the governing edition, the exact grade / PSL, the manufacturing route and the service — never from the product name alone. The inputs below are what separate a fitted specification from a family-level guess.
Inspection & specification basisGoverning standard & edition
API Spec 5L with the edition — the product standard that fixes grades, PSL, inspection and marking. State the edition explicitly, never 'API 5L' as an assumption.
Grade / PSL / type
The exact grade within the X-series (X42, X52, X60, X65, X70, X80) plus the Purchase Specification Level that sets inspection and testing scope.
Line-pipe fit & scope
API 5L is the line-pipe specification — use it only where the project requires line pipe within its scope, confirmed against the governing pipeline design code.
Manufacturing route
Seamless or the welded/ERW route as permitted by the edition — the route changes seam controls, weldability and the inspection scope.
Dimensions & wall
NPS/DN or OD, wall/schedule, length and end condition. Dimensional and wall-tolerance checks follow from these.
Service & documents
Design temperature/pressure context, service supplements, testing, inspection, marking and the commercial fields — quantity, destination, Incoterm, date.
Confirm the exact API 5L route before ordering
When a manufacturing-route or cross-grade comparison is required, verify against the registered pillar and line-pipe route below rather than a generic claim.
These links apply where the visible decision text needs verification — the API 5L pillar and the line-pipe route clarify scope before ordering, never as an assumed equivalent grade.
API 5L Steel Pipe Applicability and RFQ Checker
Lock the line-pipe specification before you request the quote
Enter the governing code and edition, grade / PSL, manufacturing route, dimensions, service and the commercial fields below. The checker interprets applicability to line-pipe service, flags missing inputs, and builds a ready-to-copy RFQ summary without re-keying a single figure.
Nothing you type here is sent anywhere — the checker runs entirely in your browser so you can refine the specification before submitting it to the commercial team. No grade substitution is made without purchaser approval, and fit or design pressure is never derived from the grade or schedule alone.
Standard / code and grade / PSL required
The invoked edition and the exact grade / PSL must both be explicit before the RFQ is usable. 'API 5L pipe' alone is not a specification — supply the governing edition and the exact grade / PSL designation first.
RFQ draft
Product / entity: API 5L Steel Pipe Governing standard & edition: — Grade / PSL / type: — PSL / inspection scope: — Manufacturing route: — Size / NPS (DN): — Schedule / wall: — Service / design basis: — Surface / coating / finish: — Quantity & unit: — Destination: — Required delivery date: —
The fit result is derived from the inputs you enter here. It is a procurement aid, not a substitute for the governing API 5L edition, the invoked PSL, or the project design code — confirm the exact scope at quotation. Design pressure is never derived from the grade or schedule alone.
Specification
API 5L, the X-grades, and the tables that close a fitted order
The page treats the governing edition, the exact grade / PSL, the manufacturing route, the dimensions, the service and the document scope as interdependent. Confirmed, evidence-grade values are stated only against the governing standard — never invented here.
API 5L grade/standard decision table
API 5L is purchased by grade and by Purchase Specification Level. The table below is ordering guidance — confirm the exact limits and permitted processes against the invoked edition, not from this page alone.
| Field | What it defines | Why the buyer must state it |
|---|---|---|
| Invoked standard & edition | API Spec 5L — the order fixes grades, PSL, inspection, marking and permitted processes. | State the edition explicitly; never 'API 5L' as an assumption. |
| Grade / PSL | The exact X-grade plus the Purchase Specification Level that sets inspection scope. | Select the exact grade and PSL; neither is inferred from the family name. |
| Manufacturing route | Seamless or the welded/ERW route as permitted by the edition. | The route changes seam and weldability controls and the inspection scope. |
| Ordering scope note | API 5L is a line-pipe specification with explicit scope boundaries. | Not a generic stand-in where the project does not call for line pipe within scope. |
Evidence warning: the determination of applicable grade, PSL and scope is set by the invoked API 5L edition and the governing design code. Values shown are decision aids; confirm every limit against the cited edition and treat any substitution as an approval item.
Dimensions, wall and unit weight to supply
Nominal size and schedule define the outside diameter, wall thickness and unit weight the quotation is planned around. Keep inch-pound and SI units coherent — do not mix values in a way that creates false precision.
| Ordering field | What to specify | Quotation effect |
|---|---|---|
| Nominal pipe size (NPS / DN) | Nominal size or OD that defines the size class. | Sizes outside a common range affect availability and the unit-weight basis. |
| Schedule / wall thickness | Wall schedule that determines mass and the applicable checks. | Wall/schedule is an order field — never derived from the grade. |
| Length & end condition | Cut length and end condition. | Length and end finish change the dressing and shipping plan. |
| Unit of measure | Coherent inch-pound or SI. | Keep one coherent system to avoid false precision on weight and tolerance. |
Evidence warning: exact outside diameters, wall thicknesses and unit weights are standard-specific. Confirm the dimensional table for the invoked API 5L edition, or use the registered steel pipe dimensions and steel pipe schedule chart resources to verify.

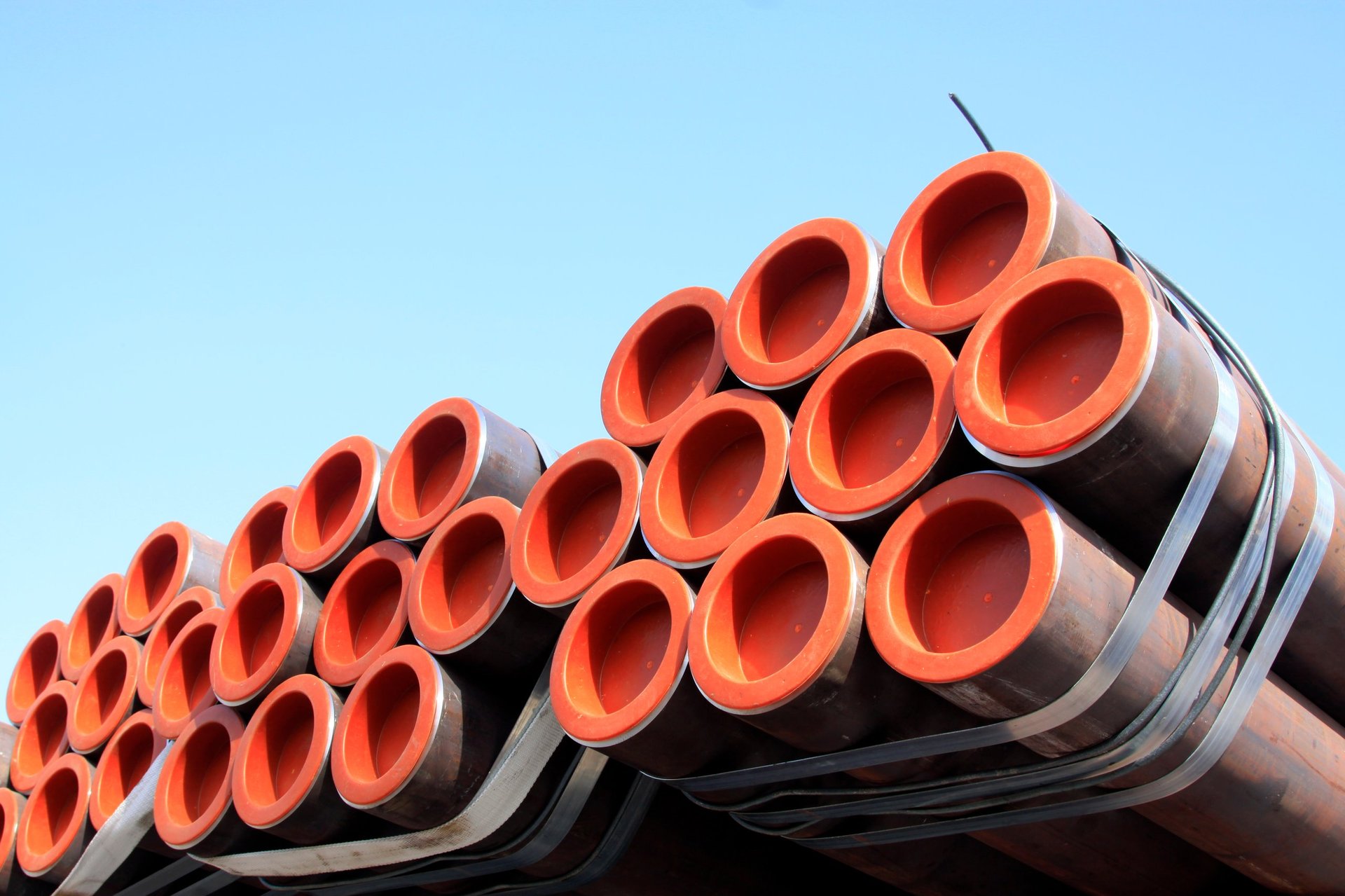

Cross-section & dimensional basisConcrete grade options within API 5L
When the project designates a concrete API 5L grade, test it against the governing standard and service on the registered grade page — rather than specifying a generic steel family. The comparison is by project consequence (design code, PSL, service/toughness, weldability), not by strength ranking alone.
API 5L Grade B
A concrete API 5L grade option — test it against the governing standard and service.
Open gradeAPI 5L x42
The X42 grade page for scope and ordering fields.
Open gradeAPI 5L x52
The X52 grade page for scope and ordering fields.
Open gradeThese grade links apply because the visible decision text explains how the exact grade is tested against the standard and service. Presenting them here keeps the comparison decision-led rather than a link directory.
Chemistry & mechanical properties to confirm
API 5L specifies steel chemistry and mechanical requirements by grade and by PSL. The table below frames the properties the ordering process must confirm — it is a decision aid, not a substitute for the standard.
| Property | What is specified | Units / condition | Verify |
|---|---|---|---|
| Chemical composition | API 5L specifies permitted composition limits per heat. | wt% as specified | Confirm the exact limits against the invoked edition. |
| Minimum tensile strength (grade-specific) | The grade's specified minimum tensile. | psi (MPa) | Confirm the specified minimum against the edition and heat. |
| Minimum yield strength (grade-specific) | The grade's specified minimum yield. | psi (MPa) | Confirm the specified minimum against the edition and heat. |
| Toughness / PSL scope | Impact/toughness requirement where the grade, PSL or service supplement requires it. | per method | Confirm against the governing standard, PSL and service condition. |
Evidence warning: this page does not publish recalled numbers. The exact chemistry and mechanical table — including units and test method — must be confirmed against the invoked API 5L edition and PSL and stated in the RFQ; the mill test certificate carries the shipment-specific values.
Governing standard
American Petroleum Institute — API Specification 5L, Line Pipe, 47th Edition. API 5L governs the manufacture of seamless and welded steel line pipe, including material, process, inspection, testing, marking and traceability. Confirm the edition your project invokes and verify scope and order fields against the standard.
View API 5L announcementGrade & scope
API 5L covers the X-series line-pipe grades and the concrete options tracked on the registered API 5L grade pages. Verify the exact scope and any supplementary requirements against the invoked edition, and confirm the grade / PSL before committing to an order.
Quality, Testing & Documentation
The verification package is part of the specification
API 5L is supplied against a document set that maps one-to-one to the governing edition, the invoked PSL, the tests the buyer requests and the project inspection requirements. State the documents you need in the RFQ and the commercial team confirms what the consignment can carry.
Mill test certificate (MTC)
Chemical and mechanical test values matched to the heat, grade, PSL, route and size shipped.
PSL / inspection-scope confirmation
The inspection and testing scope tied to the stated Purchase Specification Level.
Dimensional & wall tolerance report
OD, wall and schedule controlled to the standard's tolerance limits.
Hydrostatic / pressure test record
Test evidence confirming the pipe meets the standard's pressure acceptance criteria.
NDE / NDT (body or weld zone)
Non-destructive examination where the standard, PSL or supplementary requirement calls for it.
Coating / finish confirmation
The surface/coating condition tied to the order — a finish mismatch changes inspection and service.
Documented handoffAvailability and documentation matrix
What is confirmed at quotation against the full specification — never published as a standing claim.
| Item | When confirmed | RFQ action |
|---|---|---|
| Availability of size / schedule / grade / PSL | Against the full requested specification. | State the exact size, schedule, grade and PSL. |
| Price | On request, per quotation. | Never prefilled; supplied on request. |
| Lead time & origin | Per order against the delivery date. | Provide the required delivery date and Incoterm. |
| Mill test certificate (MTC) | With each consignment, shipment-specific. | Request the MTC in the purchase order. |
| Inspection / NDE scope | Set by the governing edition, PSL and project code. | State required tests and documents explicitly. |
Evidence note: stock, price, lead time, origin and certificate availability are commercial inputs confirmed at quotation — this page never invents them or creates an unsupported certificate.
Applications
Map the operating requirement to product, grade and standard
API 5L is specified by service and design basis, not by application name. Each path below connects the operating requirement to the exact application or industry route, with fit limits and the inputs to confirm before ordering.
Oil & gas transmission
Line pipe for hydrocarbon and gas transport where the exact API 5L edition, grade and PSL are confirmed against the project's design and inspection basis.
Water & utility pipelines
Low-to-moderate-pressure transmission and utility lines where fit is confirmed against the design code and the ruling standard — never from the application name alone.
Sour, offshore & low-temperature service
Service supplements where toughness, PSL and inspection materially change the fitted grade and its review — routed through the design code and project requirement.
These application and industry routes appear because the visible decision text explains which operating service applies and what must be verified first — the design code, service risk and documentation can differ across them.
GCC Markets & Destination Planning
Route the requirement and its document scope by destination
Every market enquiry stays under the same specification discipline — edition, grade / PSL, route and destination confirmed before quotation. Each card is a live route to the exact steel pipe supplier page for that country; availability, pricing and documentation are confirmed at quotation, never published as a standing presence claim.
United Arab Emirates
Domestic project coordination and documentation.
Reconcile line-pipe size, wall, grade and PSL against the project requirement and plan domestic delivery to site, stockist or fabricator.
Saudi Arabia
Project specification and import documentation.
State the API 5L edition, grade, PSL and inspection scope plus the delivery base so the quotation matches the requirement.
Qatar
Project specification and delivery.
Confirm standard, grade, PSL, quantity and delivery window so documents and logistics stay aligned to the order.
Kuwait
Specification and import documentation.
Provide destination and Incoterm so the document and delivery plan can be aligned to the order.
Bahrain
Project-grade specification.
Confirm contract terms, certificates and delivery base before quotation.
Oman
Energy and infrastructure project supply.
Provide destination, required documents and delivery date so quotation can be fixed.
Provide the destination and required delivery date so the document, Incoterm and logistics plan can be aligned to the order. Destination, port or delivery-location, and import-document inputs are confirmed per order — they are never presented as a served-market claim.
Commercial
Quotation inputs, packaging, documents and delivery
The commercial department returns availability and price against a complete specification — never as a standing, unverified figure. Pricing is on request, and the packaging, document, delivery and Incoterm plan is confirmed for each order.
Pricing basis
Price on request. Availability and pricing are confirmed once the edition, grade / PSL, quantity, destination and delivery date are known.
Quantity & packaging
State total length or unit count and unit, plus any packing requirement — the quote is built on the confirmed quantity and size set.
Incoterm & delivery
Confirm the Incoterm, destination and required delivery date so logistics and documents stay aligned.
Document & inspection
Confirm the PSL inspection scope and the required certificate set at order so the supply is verifiable.
What a complete RFQ carries
- Governing code & API 5L edition
- Grade / PSL and manufacturing route
- NPS/OD and wall, length, end condition, coating
- Service supplements, testing/documents, quantity, destination, Incoterm, date
How the commercial team follows up
A single quotation owner confirms availability, price, documents and a GCC delivery plan across the registered markets, and is reachable by email, phone and WhatsApp.
Registered Alternatives & Technical Resources
Specify, verify, and quote in context
Pair the API 5L request with the technical verification resources so the specification, the dimensions and the document request all travel together.
Steel Pipe Dimensions
Verification and calculation resource for dimensions, schedule, wall and tolerance.
OpenSteel Pipe Schedule Chart
Wall-schedule reference to pair with the grade, PSL and design basis.
OpenThese resources apply to the dimensional, schedule, weight, tolerance, coating and pressure-input verification called out on this page.
Expert Insight
What makes an API 5L order scope-correct, complete and evidence-ready
A source-backed procurement decision note for API 5L Steel Pipe. The conclusion is organization-level and standard-derived; no alternate, unverified grade or service claim is implied, and no named individual is credited without an approved profile.
Scope check
American Petroleum Institute — API Specification 5L, Line Pipe, 47th Edition
The governing scope is the manufacture of seamless and welded steel line pipe, including material, process, inspection, testing, marking, traceability and updated requirements for line-pipe applications.
The decision question: what must the purchaser state for an order under API 5L Steel Pipe to be scope-correct, complete and evidence-ready?
Applicability boundary
API 5L product requirements do not replace the governing pipeline design code, the purchaser specification, the service-condition review or project-specific supplementary requirements. Fit and design pressure are never derived from the grade or schedule alone.
Buyer implication
- State the invoked edition and all order-defining fields — grade / PSL, manufacturing route, dimensions, coating, testing, marking and documents.
- Treat substitutions or omitted supplementary requirements as approval items rather than silent equivalents.
- Convert unresolved conditions into RFQ fields rather than inferred facts.
Method & source
Method: read the publisher-defined scope and ordering/test context in American Petroleum Institute — API Specification 5L, Line Pipe, 47th Edition; compare it with the buyer's service, process, grade/standard, dimensions and evidence needs; state the fit boundary and convert unresolved conditions into RFQ fields rather than inferred facts.
Primary source: American Petroleum Institute — API Specification 5L, Line Pipe, 47th Edition. Information date: API 47th edition announcement reviewed 2026-09-04; edition published in 2026.
Scope: manufacture of seamless and welded steel line pipe, including material, process, inspection, testing, marking, traceability and updated requirements for line-pipe applications. Limitations: API 5L product requirements do not replace the governing pipeline design code, purchaser specification, service-condition review or project-specific supplementary requirements.
Advantages
What the specification process protects against
The page, the checker and the document matrix exist to stop the recurring mistakes that turn an API 5L request into a re-quote or an invalid substitution. Each row pairs a common failure with the evidence-controlled action this page enforces.
Common failure
Requiring 'API 5L' without the edition or PSL
Evidence-controlled action & outcome
The page and tool force the API 5L edition, exact grade / PSL designation, manufacturing route and service — the fields that turn a family-level request into a quoteable specification. An RFQ that names 'API Spec 5L, edition, grade, PSL …' rather than 'API 5L pipe' alone.
Common failure
Selecting the grade by strength ladder instead of project consequence
Evidence-controlled action & outcome
The standard page frames the X-grades by design code, PSL, service/toughness and weldability consequence and routes comparison to the registered grade pages — not by a strength ranking that hides fit. A grade decision tied to the exact governing standard, edition and service, never assumed.
Common failure
Quoting API 5L without a PSL
Evidence-controlled action & outcome
The checker requires the Purchase Specification Level before transfer, because PSL changes the inspection and testing scope. A qualified RFQ with the PSL and its inspection basis made explicit.
Common failure
Requesting an incomplete document or coating set
Evidence-controlled action & outcome
The document matrix ties each certificate and the coating condition to what it verifies and when it is required. A complete, shipment-specific test, inspection, coating and document request.
Common failure
Deriving fit from the grade or schedule alone
Evidence-controlled action & outcome
The tool does not present a 'fit' result until the edition, service and PSL are explicit, and never derives design pressure from grade or schedule. No field silently quoted from a partial specification.
Procurement Journey
From requirement to delivered, documented line pipe
Nine steps take an API 5L Steel Pipe requirement from an initial enquiry to a closed-out, documented delivery. Each step names its owner, the input that unblocks it, the evidence that confirms it, the risk it carries and the next action.
Requirement
Buyer
Scope confirmed against the project basis.
Watch — Thin spec undefined.
Next: Define standard and grade.
Specification review
Commercial + technical
Grade and PSL reconciled to the standard.
Watch — Wrong standard or grade.
Next: Confirm fit in the checker.
Quotation
Commercial
Availability and pricing on request.
Watch — Unknown lead time.
Next: Receive confirmed offer.
Order
Buyer
Order held to quoted spec.
Watch — Spec drift.
Next: Confirm order line.
Quality & documents
Technical / QA
MTC, hydrostatic, NDE and coating records verified.
Watch — Missing certs.
Next: Approve document set.
Finish / dressing
Supplier + buyer
Product dressed to spec.
Watch — Finish mismatch.
Next: Confirm finish.
Packing
Supplier
Bundled and tagged by grade, size, PSL.
Watch — Mixing lots.
Next: Verify tags.
Shipping
Supplier / forwarder
Coordinated to destination.
Watch — Document delay.
Next: Track to site.
Delivery & follow-up
Commercial
Handed to site with documents.
Watch — Open claims.
Next: Close out.
Most API 5L questions are answerable from the specification once the edition, PSL, route and service are explicit — the checker on this page returns a qualified RFQ rather than an assumption.
Request a QuoteBuyer FAQ
API 5L Steel Pipe — the questions buyers actually ask
Direct answers on the ordering fields, scope, comparison, testing and substitution that matter for an API 5L order.
What does the buyer need to state when ordering API 5L Steel Pipe?
State the governing pipeline/piping code, the invoked API 5L edition, the exact grade within the X-series, the Purchase Specification Level, the manufacturing route, NPS/OD and wall, length and end condition, the service/design basis including any service supplement (sour/offshore/low-temperature), and the coating and document requirements. The edition, PSL and service conditions must be explicit before a fit result is presented — never inferred from the product name alone.
Which manufacturing routes and dimensions are within the applicable product scope?
API Spec 5L covers seamless and welded steel line pipe, subject to the invoked edition's scope. State the manufacturing route (seamless or welded/ERW) and the dimensional set — NPS/DN or OD, wall or schedule, length and end condition — because the route changes seam and weldability controls and the dimensional checks that apply. Confirm the exact edition and its permitted processes at quotation.
What is the safest way to compare this route with the closest registered grade or standard?
Compare the X-grades by project consequence — design code, PSL, service/toughness, weldability and documentation — rather than by strength ranking alone. Use the registered API 5L x42, x52 and grade B pages for the exact scope and ordering fields, and never read a grade name as proof of equivalence across editions or standards.
Which test, traceability, and certification requirements must be stated in the purchase order?
State the mill test certificate (MTC), the PSL inspection-scope confirmation, hydrostatic/pressure evidence, non-destructive examination where the standard or PSL calls for it, dimensional and wall-tolerance confirmation, and the coating/finish condition. The exact test and document set is set by the API 5L edition, PSL and service conditions and is confirmed at quotation — it is shipment- and standard-dependent rather than a fixed default list.
Can this grade or standard be substituted for another without project approval?
No substitution is automatic. A different X-series grade, or the same grade name in another standard, is not equivalent under API 5L. Any substitution requires purchaser and project approval with evidence, and is accepted only with the governing standard and edition stated.
Request a Quote
Request a quote for API 5L Steel Pipe
Convert the resolved API 5L decision into a complete, copyable RFQ and hand it to the registered target. The commercial desk confirms availability, pricing and the document scope against your full specification — price is always on request.
Include in your enquiry
Governing code & API 5L edition
Grade / PSL and manufacturing route
NPS/OD and wall, length, end condition, coating
Service / design basis & any supplement
Quantity, destination, Incoterm and required delivery date
Prefer chat?
