Steel Pipe Dimensions Chart
Use a dimensions resource to translate the buyer’s NPS and schedule or stated OD/wall into a verified dimensional basis before RFQ. The chart must identify the governing dimensional standard and must not imply that matching dimensions alone establish material, pressure rating, or service suitability.
- NPS / DN / OD
- Schedule / wall
- Dimensional standard & edition
- Unit system
- Verify before RFQ
RFQ-readiness: a steel pipe order becomes quotable with a verified dimensional basis when the standard/edition, NPS and schedule are explicit. Use the Dimension Resolver to build that basis, then transfer it to the RFQ — and verify material, grade and service suitability as separate gates.
Price on request — quantity, schedule, material and grade confirmed from the full verified specification
Interactive decision tool
Steel Pipe Dimension Resolver
State the dimensional standard and the nominal size; the resolver returns a verified nominal OD basis, echoes the schedule as a separate field, and builds a copyable dimensional line for RFQ — without deriving wall, pressure or grade.
Verification signal
Governing dimensional standard required
No outside diameter is presented without a stated dimensional standard and edition. Select the governing standard — for example ASME B36.10 — so the chart identifies the reference the value answers to. Matching dimensions alone do not establish material, pressure rating or service suitability.
Scope boundary
The resolver verifies a dimensional basis only. It does not calculate pressure capability, does not derive wall from schedule, and does not imply material, grade or service suitability. Unsupported sizes force a verify-against-standard path rather than a guessed number.
Copyable dimensional line
The verified basis to carry into the RFQ. All assumptions are explicit.
| Field | Value |
|---|---|
| Product / entity | Steel Pipe (Dimensions) |
| Manufacturing route | to confirm (seamless / welded) |
| Material | — |
| Standard and edition | — |
| Grade / PSL / type | — |
| NPS / DN / OD | — |
| Schedule or wall thickness | — |
| Service / design conditions | service suitability verified separately |
| Coating / lining / finish | to confirm |
| Testing / inspection | dimensional / tolerance check + MTC |
| Document / MTC requirements | MTC + dimensional report |
| Quantity / unit | — |
| Packing | as quoted |
| Destination country / city / port or named place | — |
| Incoterm | to confirm |
| Requested delivery date | — |
Method & data conditions
How this chart derives its values
Every value is presented under a stated dimensional standard and unit system, with source, method, applicability and limits made explicit.
Governing dimensional standard. Every outside diameter is presented as a nominal value under a stated standard and edition — ASME B36.10 for welded and seamless wrought steel pipe, or the project-specified standard. The chart names its source; it never invents a value.
Unit system coherence. Inch-pound and metric are kept coherent: each nominal OD is shown with both its inch and millimetre value, converted consistently so no false precision is created.
Nominal vs overoted. Nominal size is not the same as the measured outside diameter. The chart returns the standard nominal OD; the purchased length, wall and any measured tolerance are confirmed against the standard and the mill certificate.
Assumptions and limits. The resolver verifies dimensions only. It does not calculate pressure rating, does not derive wall from schedule, and does not imply material, grade or service suitability from a size.
Source and revision
| Reference | Status | RFQ action |
|---|---|---|
| ASME B36.10 — Welded and Seamless Wrought Steel Pipe | Source of the nominal OD subset; edition to be confirmed at quotation | Confirm edition + stated standard |
| Project / owner dimensional requirement | May override a chart value for a named project | State project standard + edition |
| Mill test certificate / dimensional report | Purchased OD, wall, tolerance per shipped heat | Request MTC + dimensional report |

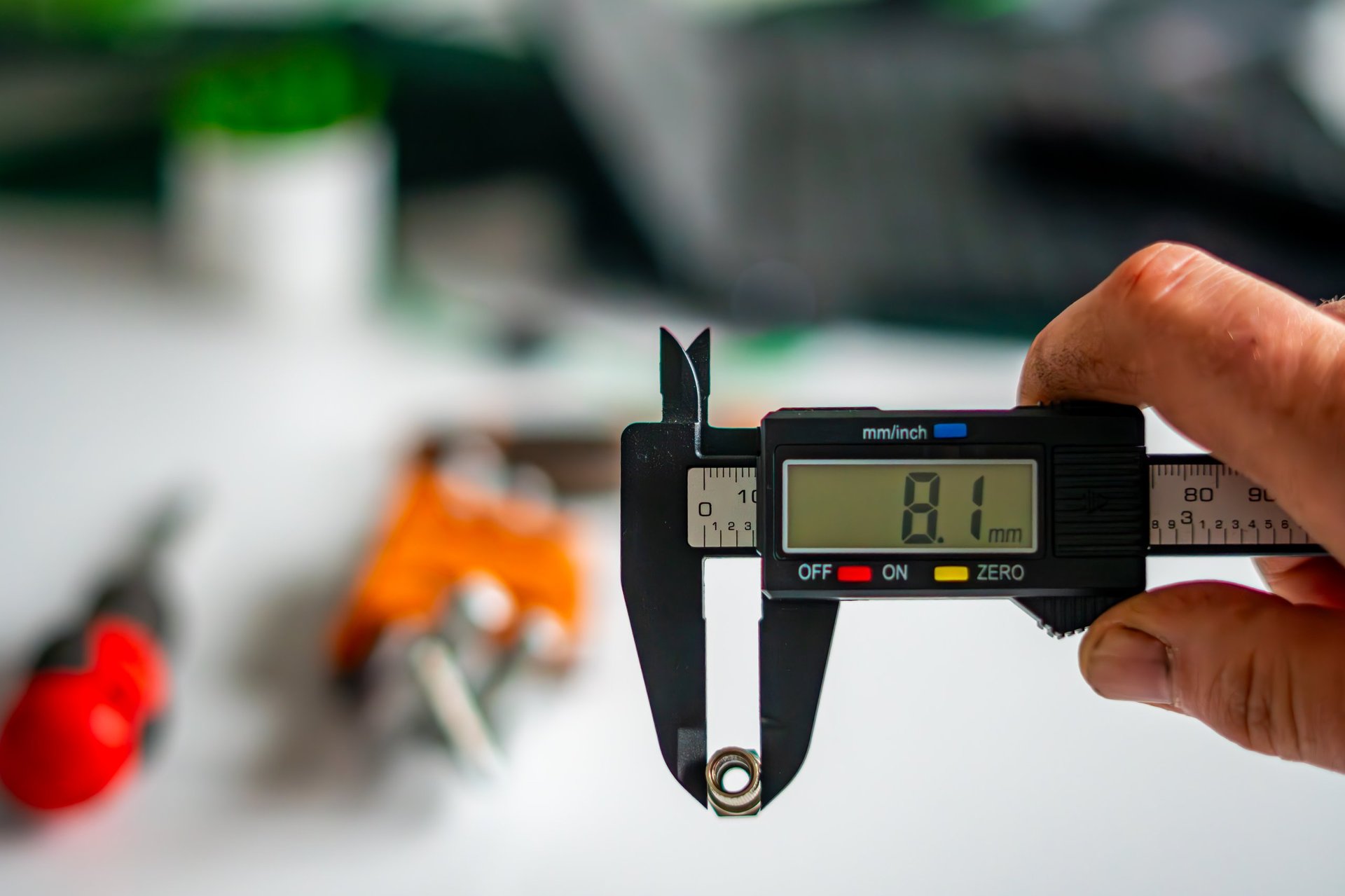

The marking and end-condition inspection shown is part of confirming the purchased OD, wall and length against the standard and the mill certificate.
Worked examples
From input to verified dimensional basis
Example 1 — NPS 10, schedule stated
Input: NPS 10, schedule 40, inch-pound, ASME B36.10.
Method: NPS fixes a nominal OD of 10.750 in (273.1 mm) under the stated standard.
Interpretation: This is a dimensional basis. Schedule 40 is echoed as a separate field — it does not set pressure or wall by itself.
Decision impact: The buyer can take NPS 10 + schedule into the RFQ for quantity and wall, and verify material/grade and pressure separately. 10 inch steel pipe turns the dimension into a size decision.
Example 2 — size outside the subset
Input: NPS 5, inch-pound, ASME B36.10.
Method: 5 is not in this page’s reference subset, so no OD is read off a partial chart.
Verification step: The value must be confirmed against the printed standard/edition. The RFQ carries NPS 5 as an overoted, schedule and pending-verification field rather than a guessed number.
Standards · grades · sizes
The nominal-to-OD reference
Nominal outside diameters referenced to ASME B36.10. Every value is a dimensional result under the stated standard and edition, confirmed at quotation — it never establishes material, pressure or service suitability by itself.
Standards and tolerance context
The outside diameter, wall and schedule are controlled by the governing standard and edition. Tolerance limits are set by that standard — confirm the permitted tolerance band on the actual size against the printed document, not from this chart alone.
Schedule is not pressure
Schedule refers to a nominal wall series in the standard. It does not by itself set pressure capability. Two pipes of the same NPS and different schedule can carry very different design pressures; pressure is judged by the design code and wall calculation, never by schedule name.
Route and grade are separate
Dimensions alone do not identify material, grade or manufacturing route. Seamless and welded pipes can share the same nominal OD yet differ in material, grade, test obligation and purchase specification. Keep grade, grade/PSL type, and route explicit in the RFQ.
Verify at quotation
Every dimensional value that matters — OD, wall, length, tolerance — is confirmed at order against the standard/edition and the mill certificate. This page builds the basis; the RFQ carries it for verification.
Core reference table — nominal OD by NPS (ASME B36.10)
Applicability: nominal outside diameters for welded and seamless wrought steel pipe in inch-pound (with millimetre equivalent). Limitation: a dimensional value only — wall, schedule, tolerance, material and grade are separate. Verify the edition and the tolerance band at quotation. RFQ field: NPS/DN/OD + Schedule or wall thickness.
| NPS | Nominal OD (in) | Nominal OD (mm) | RFQ action |
|---|---|---|---|
| 1/2 | 0.840 | 21.3 | Confirm edition + schedule |
| 3/4 | 1.050 | 26.7 | Confirm edition + schedule |
| 1 | 1.315 | 33.4 | Confirm edition + schedule |
| 1-1/4 | 1.660 | 42.2 | Confirm edition + schedule |
| 1-1/2 | 1.900 | 48.3 | Confirm edition + schedule |
| 2 | 2.375 | 60.3 | Confirm edition + schedule |
| 2-1/2 | 2.875 | 73.0 | Confirm edition + schedule |
| 3 | 3.500 | 88.9 | Confirm edition + schedule |
| 4 | 4.500 | 114.3 | Confirm edition + schedule |
| 6 | 6.625 | 168.3 | Confirm edition + schedule |
| 8 | 8.625 | 219.1 | Confirm edition + schedule |
| 10 | 10.750 | 273.1 | Confirm edition + schedule |
| 12 | 12.750 | 323.9 | Confirm edition + schedule |
| 14 | 14.000 | 355.6 | Confirm edition + schedule |
| 16 | 16.000 | 406.4 | Confirm edition + schedule |
| 18 | 18.000 | 457.2 | Confirm edition + schedule |
| 20 | 20.000 | 508.0 | Confirm edition + schedule |
| 24 | 24.000 | 609.6 | Confirm edition + schedule |
Verify scope before committing to a grade or route
The dimensional basis does not pick the grade. Confirm the product-standard scope and ordering fields — API 5L and ASTM A106 — before committing. Matching dimensions alone never establish material, grade, pressure rating or service suitability.
Verification & misuse controls
Common dimensional errors and when review is required
Input error — mixing nominal and measured
Do not treat a rounded nominal size as the measured OD. Nominal NPS is a label; the OD is a standard value and the wall a tolerance band. Use the standard’s OD, not an assumed round number.
Invalid comparison — schedule across standards
A schedule in one dimensional standard is not automatically equal to the same schedule in another. Compare wall and OD only within the same standard and edition.
Uncertainty — unverified dimension
If the size is not in an authoritative reference and edition, treat the dimension as unverified. Request the mill certificate and a dimensional/tolerance check rather than reading a value off a partial chart.
Evidence requirement — the certificate set
The wall, OD, tolerance and any test values must be traceable to the standard/edition and the shipped heat. Request the mill test certificate and dimensional report at quotation.
Engineering review boundary
Where a dimension must also guarantee pressure capability, material or grade for a design, the decision moves past a dimensions chart to the design engineer and governing code. This page does not cross that line.
Where a dimension must guarantee pressure capability, material or grade for a design, the decision moves past a dimensions resource to the design engineer and the governing code. This page does not cross that line.
Selection handoff
Carry the verified dimension into the Steel Pipes path
The dimensional basis is one input. Connect it to the Steel Pipes product, size, grade and application paths, and to the cross-product steel size charts pillar.
Steel Pipes hub. The Steel Pipes page holds product form, material, grade and standard paths — change any of them without losing the qualified dimensional context.
Cross-product pillar. Compare this dimension member with the approved steel size charts topic while preserving the technical boundary: sizes inform supply and quantity, not pressure or service fit.
Size to grade. A specified NPS/schedule is only one line. The 10 inch steel pipe size and API 5L / ASTM A106 grade paths confirm the ordering fields before commitment.
The dimension is verified; the grade, schedule wall, pressure rating and service suitability remain separate gates confirmed against the standard and the design code.
Related references
Pair the dimension with the reference you use
Steel Pipe Schedule Chart
Schedule and wall reference to pair with the dimensional basis and confirm the wall series and its limits.
Open referenceSteel Pipe Weight Chart
Weight per unit length computed from the confirmed OD and wall for quantity and logistics.
Open referenceNPS to OD Conversion Chart
A direct nominal-to-outside-diameter conversion reference for the full size range.
Open referenceMarkets
Steel pipe dimensions across the GCC
Noor Deira Steel coordinates steel pipe supply, documentation and delivery for buyers across the GCC, on a verified dimensional basis.
United Arab Emirates
Carry the verified NPS/OD and schedule into the RFQ with the destination so the commercial team can confirm the dimensional basis and document set for delivery to site or stockist.
Steel pipe supplier
Saudi Arabia
State the dimensional standard/edition, NPS, schedule, quantity and delivery base so the quotation matches the requirement and import documents stay aligned.
Steel pipe supplier
Qatar
Confirm standard/edition, NPS, schedule, quantity and delivery window so the dimensional basis and logistics stay aligned to the order.
Steel pipe supplier
Kuwait
Provide destination and Incoterm so the document and delivery plan can align with the verified dimensional basis.
Steel pipe supplier
Bahrain
Confirm contract terms, standard/edition, NPS/schedule and delivery base before quotation.
Steel pipe supplier
Oman
Provide destination, required documents and delivery date so the quotation can be fixed on the verified dimension basis.
Steel pipe supplierExpert insight
Which dimensional basis to carry into the RFQ — and what it does not settle
A dimensional basis, clearly scoped
A steel pipe dimension is judged against a fixed dimensional standard. ASME B36.10 — Welded and Seamless Wrought Steel Pipe — standardizes dimensions for welded and seamless wrought steel pipe for high- or low-temperature and pressure service. The chart identifies the source and edition of each found value. Reference reviewed 2026-09-04; the ASME page identifies B36.10-2022.
A dimensional standard does not by itself establish material grade, project design pressure, corrosion allowance, or fitness for a specific service.
ASME B36.10 — Welded and Seamless Wrought Steel Pipe reference
Buyer implication — verify in the RFQ
The buyer can use the result for dimensional or quantity preparation only after the standard/edition row is verified. Material and design-code checks remain separate gates before service acceptance: schedule wall, grade/PSL type, pressure rating and coating are each confirmed against the governing standard, the design code and the mill certificate.
Carry the verified NPS, OD, schedule/wall and standard/edition into the RFQ, and state the dimension, quantity, destination, Incoterm and delivery date so the quotation is built on an auditable dimensional basis rather than a guessed value.
Why this approach
A dimensional basis that cannot quietly drift
Ordering pipe without a stated dimensional standard or edition
The page and resolver force the governing standard/edition to be explicit before any OD is presented, and refuse to present a dimension without one.
An RFQ that names the dimensional basis so the commercial team can verify the value and the tolerance band.
Treating the same NPS as one fixed pipe regardless of schedule or grade
The resolver returns only a nominal OD and echoes schedule as a separate explicit field; schedule is never presented as pressure or wall.
A dimensional basis that keeps schedule, grade, route and test obligation distinct rather than collapsed into a size.
Deriving pressure rating or wall from a dimensions chart
The tool does not and cannot derive pressure capability or wall from schedule; it states the boundary explicitly and hands wall/pressure to the design code.
A scope-checked decision where the verification boundary is visible rather than a fabricated value.
Converting or selecting values on a partial chart without an authority
Only the nominal OD subset referenced to ASME B36.10 is carried; unsupported sizes force a verify-against-standard path rather than a guessed number.
A copyable dimensional line that another engineer or buyer can audit against a named source and edition.
Hiding the dimension, quantity and destination in a vague price request
The commercial section turns standard/edition, NPS/schedule, quantity, destination and Incoterm into an explicit RFQ.
A logistics-explicit quotation built on a verified dimensional basis.
Order path
From dimensional enquiry to closed-out delivery
- 1
Requirement
Input · NPS or OD, schedule/wall, dimensional standard, unit system.
Outcome: Dimensional basis stated; size identified.
- 2
Dimension verification
Input · Nominal size and schedule under the stated standard.
Outcome: OD and wall basis confirmed against the standard/edition.
- 3
Quotation
Input · Quantity, Incoterm, destination, date.
Outcome: Availability and pricing on request.
- 4
Order
Input · Purchase order vs quotation.
Outcome: Order held to the quoted dimension and spec.
- 5
Inspection & dimensions
Input · Required dimensional, tolerance and test checks.
Outcome: OD, wall and length reconciled to the standard and the shipped heat.
- 6
Packing
Input · Bundling, tagging, lashing.
Outcome: Bundled and tagged by size, schedule, material and lot.
- 7
Shipping
Input · Incoterm, port, documents.
Outcome: Coordinated to destination.
- 8
Delivery & follow-up
Input · Site handover, closed-out docs.
Outcome: Handed to site with documents.
FAQ
Steel pipe dimensions — the questions buyers ask
Which standard controls the values shown in this Steel Pipe Dimensions Chart resource?
The page presents nominal outside diameters referenced to ASME B36.10 — Welded and Seamless Wrought Steel Pipe — and requires you to state the governing dimensional standard and edition before any value is shown. The chart identifies its source and never implies that a dimension is authoritative on its own; the edition and any project-specified standard are confirmed at quotation.
Why can the same NPS have different wall thicknesses or weights?
NPS fixes the nominal outside diameter, but the wall and therefore the weight change with the schedule. Two pipes of the same NPS and different schedule share one OD yet differ in wall, cross-section and unit weight. This is why the resolver returns the OD and echoes the schedule as a separate explicit field rather than collapsing wall and weight into the size.
Does schedule by itself determine pressure rating?
No. Schedule is a nominal wall series in the dimensional standard; it does not by itself establish pressure capability. Design pressure is judged by the governing design code and the wall calculation, not by a schedule name. The resolver states this boundary explicitly and hands wall and pressure decisions to the design engineer and code.
How should metric and inch-pound values be handled in an RFQ?
Keep the unit system coherent and state it in the RFQ. The page carries each nominal OD in both inches and millimetres, converted consistently. Never mix a millimetre wall with an inch OD without stating both; a metric (DN) request must still be tied to a stated NPS or a standard-specific nominal so there is no false precision.
Which result should be copied into the RFQ and which values still require engineering verification?
Copy the verified dimensional line — NPS, schedule/wall, nominal OD, dimensional standard and edition-to-be-confirmed — into the RFQ. Material, grade/PSL type, wall tolerance, pressure rating and service suitability are separate: they are confirmed against the governing standard, the design code and the mill certificate, and are never read off a dimensions chart alone.
Request a quote
Send the verified steel-pipe specification for RFQ
Need a verified steel pipes specification? Send grade, size, quantity and destination for technical RFQ support. Price remains on request; availability, documents and lead time are confirmed from the full, verified specification.
What to send
The more fields you complete in the Dimension Resolver, the faster the commercial team can confirm availability, documents and lead time. Paste the copied dimensional line straight into the message, or use the form fields below — and keep the schedule, grade and service suitability checks separate.
Response & documents
Response times, certificate sets and lead time are confirmed per project. No stock, origin or price figure is published.
Formula & method
How a dimension result is built
Nominal to OD lookup
Outside diameter is a lookup under the stated standard and edition, not a formula from NPS. The page returns the standard nominal value and carries it with the standard/edition, unit and schedule fields.
Unit coherence
Each OD is shown in inches and millimetres, converted consistently. No cross-unit mixing that creates false precision; the unit system is stated in the RFQ.
What is never computed
Pressure rating, wall from schedule, grade/PSL type, coating and service suitability are not derived here. They are confirmed against the governing design code, the standard and the mill certificate.
More worked examples
Decision impact of a verified dimensional basis
Metric request
Input: DN 250, metric, no NPS stated.
Method: DN is a nominal label; without a stated NPS or standard-specific nominal the OD is not read off a partial chart.
Action: State NPS (e.g. NPS 10 for a ~DN 250 family) and the standard/edition, or request a standard-specific conversion, to avoid false precision in the RFQ.
Quantity estimation
Input: NPS 6, schedule stated, 500 m requested.
Method: The confirmed OD and wall under the standard feed a weight-per-length reference for quantity and logistics.
Action: Pair with the steel pipe weight chart and confirm the wall from the mill certificate before converting length to weight.
Reference
Downloadable and printable reference
Print the reference table
The nominal-to-OD table on this page is the printable subset. Confirm the full size range and the edition against the printed ASME B36.10 before ordering.
Primary source
ASME B36.10 is the governing dimensional reference (reviewed 2026-09-04; B36.10-2022). Verify the edition at quotation.
Documents
Request the mill test certificate and the dimensional/tolerance report with every consignment so OD, wall and length are traceable to the shipped heat.
